M Positioner Welding Rotisserie for Large Fabrication & Precision Welding

Modern fabrication shops demand faster production, better weld quality, and safer handling of heavy workpieces. The new M Positioner Welding Rotisserie is designed to help welders and fabricators achieve all three.

Built for use with modular 3D welding table systems, aluminium fixture profiles, and nitride hardened steel U-shape squares, this heavy-duty welding rotisserie makes it easier to rotate, position, and weld large assemblies with precision and control.

Built for Heavy Fabrication Applications

The M Positioner Rotisserie is engineered for demanding industrial environments where accuracy and efficiency matter.

With the ability to support large modular structures up to 4000mm between rotors, fabricators can confidently handle oversized weldments while maintaining smooth and stable rotation.

Perfect for:

• Custom motorcycle fabrication

• Automotive chassis welding

• Structural steel projects

• Aluminium fabrication

• Pipe and tube welding

• Industrial equipment manufacturing

• Agricultural machinery fabrication

• Heavy metalworking applications

This system transforms difficult welding jobs into safer and more manageable fabrication processes.

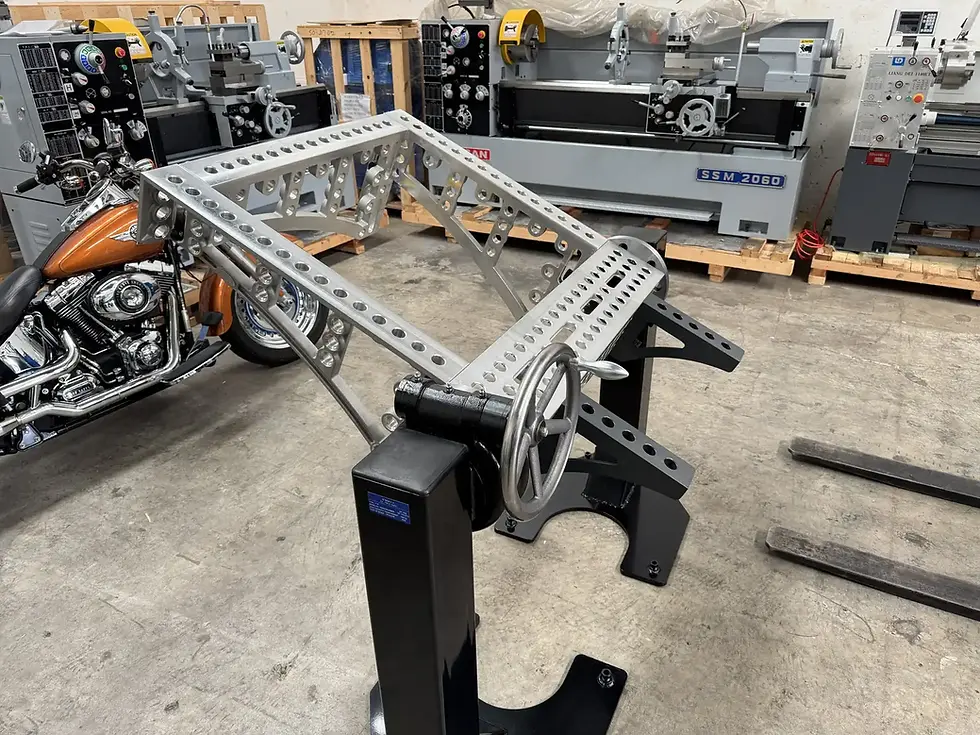

Compatible with Modular Welding Fixture Systems

Unlike traditional welding positioners, the M Positioner Rotisserie integrates directly with modular welding fixture setups.

The system supports:

• Aluminium profile fixture beams

• Plasma nitride hardened U-shape squares

• System 28 compatible tooling

• Modular clamping accessories

• Custom fabrication frames

This flexibility allows fabrication shops to quickly create rotating fixture systems tailored to different workpieces and production requirements.

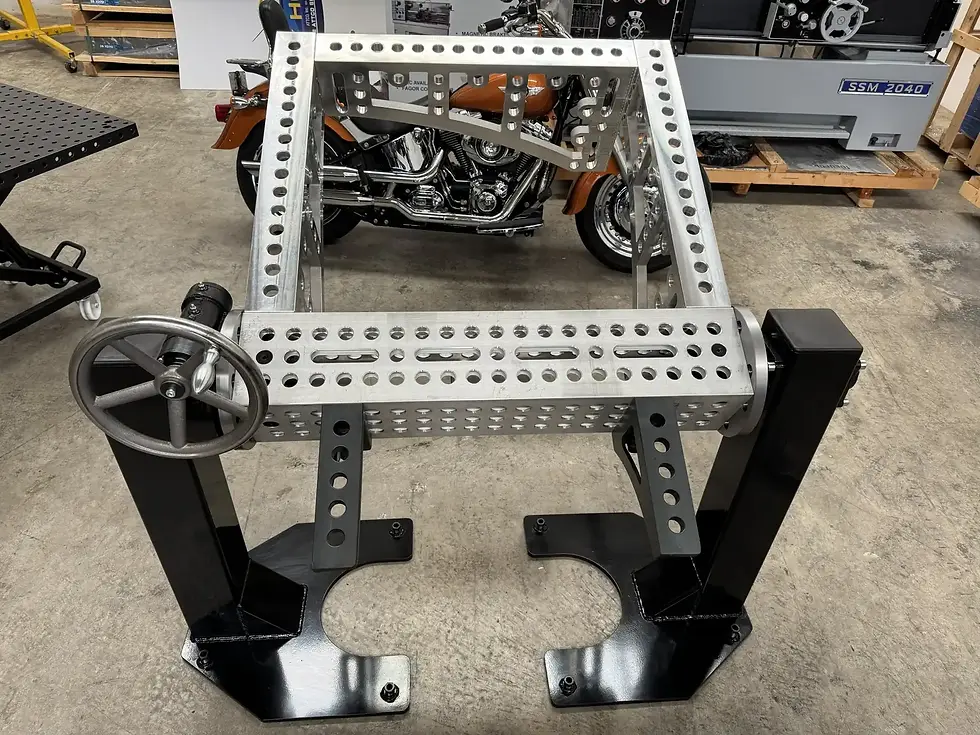

Smooth Worm Gear Rotation for Accurate Positioning

A key feature of the M Positioner Rotisserie is its industrial worm gear reduction drive system.

The oversized manual handwheel provides:

• Smooth controlled rotation

• Fine positioning adjustments

• Excellent rotational stability

• Improved welding accessibility

• Better operator control during fabrication

The worm gear mechanism helps maintain positioning accuracy while supporting heavy fabrication loads.

This is especially useful when welding complex structures that require multiple welding angles and continuous repositioning.

1500KG Load Capacity for Industrial Use

Heavy fabrication requires strong and reliable equipment.

The M Positioner Rotisserie is built with:

• Reinforced steel supports

• Heavy-duty base plates

• Industrial rotational bearings

• High-strength structural design

With a maximum load capacity of 1500KG, the system safely handles large weldments while reducing manual lifting and repositioning.

This improves:

• Operator safety

• Welding consistency

• Workshop efficiency

• Production speed

Improve Weld Quality & Fabrication Efficiency

Using a welding rotisserie significantly improves fabrication workflow compared to static setups.

Better Welding Angles

Rotate the workpiece into the ideal welding position for improved penetration and cleaner welds.

Faster Production Times

Reduce time spent manually repositioning heavy parts.

Improved Ergonomics

Minimize awkward welding positions and reduce operator fatigue.

Safer Work Environment

Rotate large assemblies safely without cranes or excessive manual handling.

Consistent Fabrication Results

Maintain accurate fixture positioning throughout the welding process.

Designed for Professional Welding Shops

The M Positioner Rotisserie is an excellent solution for:

• Fabrication workshops

• Industrial manufacturers

• Custom automotive builders

• Motorcycle fabrication shops

• Aerospace fabricators

• Heavy equipment manufacturers

• Welding schools and training centers

When paired with a modular 3D welding table system, it creates a highly flexible and professional welding workstation.

Why Fabricators Choose Canada Welding Table

At Canada Welding Table, we specialize in professional modular welding table systems and industrial fabrication tooling.

Our products are trusted by customers across Canada and worldwide because we focus on:

• Precision manufacturing

• Heavy-duty construction

• Competitive pricing

• Fast worldwide shipping

• Modular flexibility

• Long service life

We help fabrication shops improve productivity with professional-grade welding solutions designed for real industrial environments.

Contact Canada Welding Table

Looking for a professional welding rotisserie or modular fixture solution?

📧 Email: sales@canadaweldingtable.com

📱 WhatsApp: +86-180-2874-2690

Contact our team today to find the right welding positioner and modular welding table system for your fabrication projects.
